OnDeck Hub

Part Number 010-02134-00

ONLINE STORE

Feature
Specs
In The Box
Update
Accessories

BE THERE FROM VIRTUALLY ANYWHERE

Track, monitor and control any number of switches you need with the OnDeck system, a fully integrated remote connectivity solution¹.

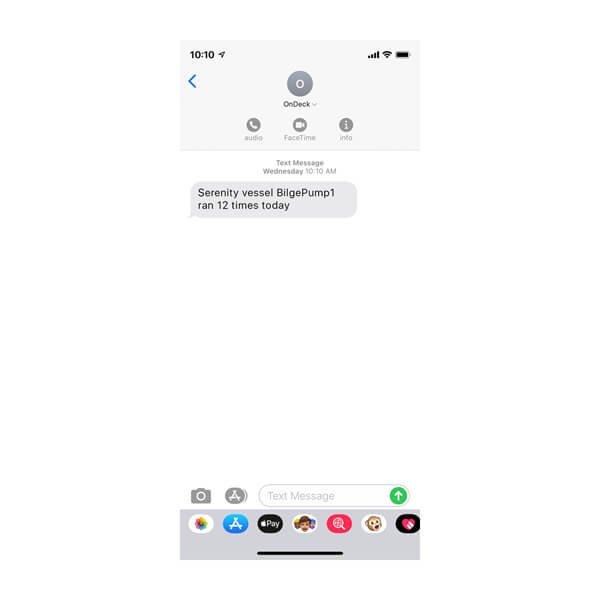

Door open? Bilge running? Peace of mind comes in the form of text alerts and updates.

New features, same app. ActiveCaptain^® keeps you connected to your boat¹.

The always-on OnDeck connection has the potential to keep you in contact from just about anywhere.

To protect your passion, you must have a plan. An active subscription is required.

Keep tabs on your boat.

TRACK

Be the first to know if a security sensor has been triggered, or if your boat has been moved. The internal GPS sensor updates every 15 or 30 minutes — depending on power status — and will send text alerts¹ if your boat leaves the geofenced area.

MONITOR

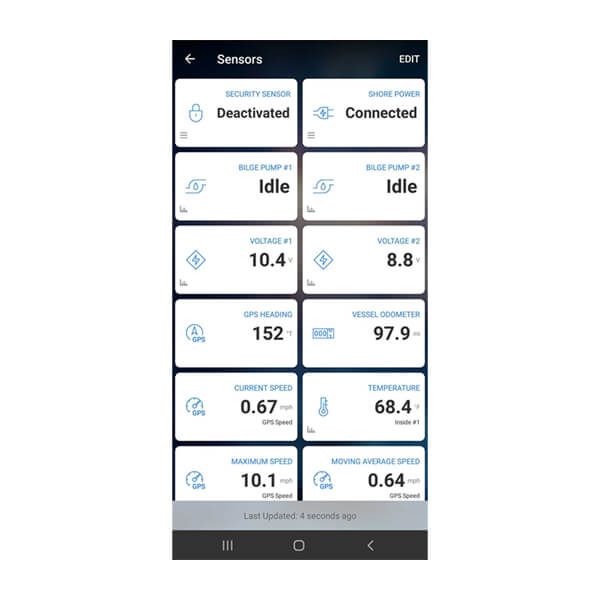

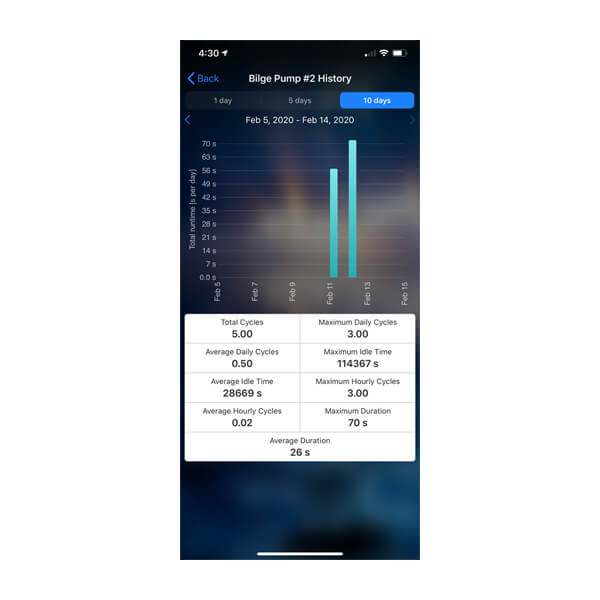

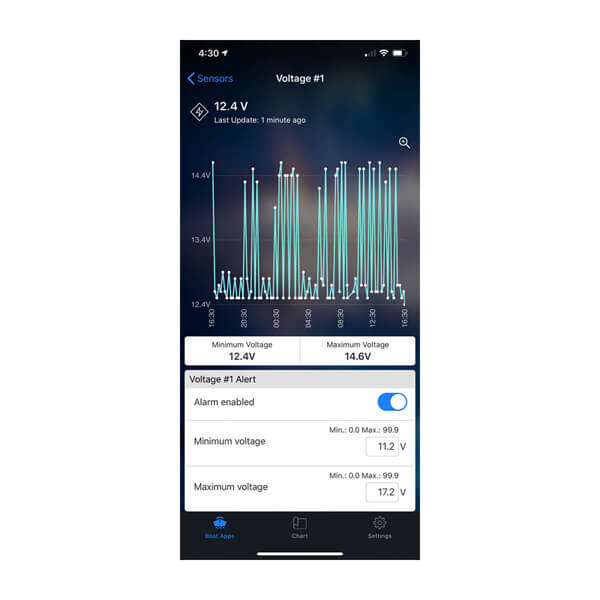

Get updates¹ on your boat’s battery status, bilge activity, shore power, temperature changes and more. Set up alarm notifications in the ActiveCaptain app.

CONTROL

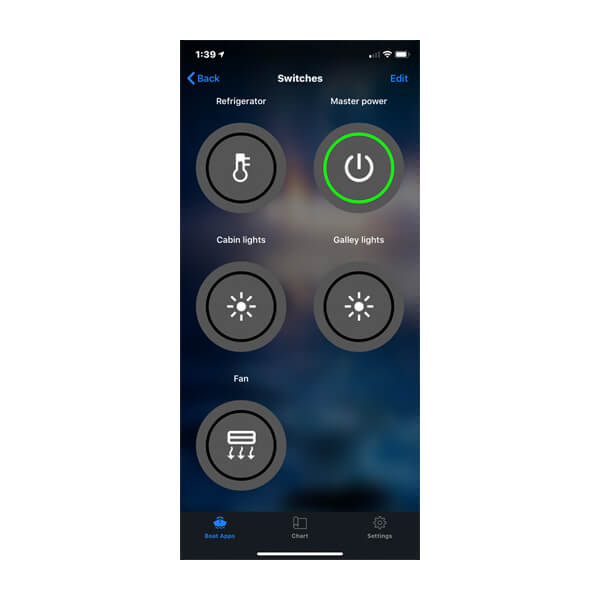

Take command of your boat. Remotely control up to five relay switches directly from the OnDeck Hub and the ActiveCaptain app for critical onboard systems, including battery chargers, ice makers and more. You can also control as many switches as you need with NMEA 2000 momentary or latching switch support via EmpirBus digital switching or other third-party interfaces.

Never miss an update.

ACTIVECAPTAIN APP

Download the ActiveCaptain app to your compatible smartphone to manage your vessel. It’s where you can set up alarm notifications, take control of your boat and so much more¹.

STORE DATA

Securely collect vessel data with the OnDeck Hub, and store it in the cloud for up to 30 days.

ALWAYS-ON CONNECTION

The hub uses 3G/4G coverage.

BACKUP BATTERY

An internal backup battery allows access to the OnDeck Hub for up to 48 hours after the boat battery is depleted or the power is disconnected.

SUBSCRIPTION

To stay in touch with your vessel, an active subscription plan is required. Choose an annual plan, or pay month-to-month.

FULL INTEGRATION

The OnDeck system is a seamless addition to your current marine electronics (MFD via Garmin Marine Network, engines, NMEA 2000® network sensors).

¹An active subscription plan is required. Both OnDeck Hub and user’s compatible smartphone or tablet must have connectivity via Wi-Fi® or 3G/4G (or above) network. See cellular coverage area for OnDeck.

Wi-Fi is a registered trademark of the Wi-Fi Alliance.

General
Physical dimensions without antennas	9.1" x 1.9" x 5.6" (23.1 x 4.9 x 14.2 cm)
Physical dimensions with antennas pointing up	9.1" x 5.2" x 5.6" (23.1 x 13.2 x 14.2 cm)
Physical dimensions with antennas parellel to mounting	9.1" x 1.9" x 8.5" (23.1 x 4.9 x 21.5 cm)
Weight	1.4 lbs (0.64 kg)
Power consumption	20 W max at 10 Vdc
Input voltage range	From 10 to 32 Vdc
Battery life	Up to 48 hours
Monitoring frequency	15 minutes

Connectivity
NMEA 2000® compatible
ActiveCaptain compatible
Cellular connectivity	yes (3G/4G)
Wi-Fi®
Garmin Marine Network

Sensors
Bilge pump	yes (2)
Security	yes (30)
Battery voltage	yes (2)
Temperature
Shore power
GPS location
Distance log

NMEA 2000 Sensors
Fluid level
Temperature
Water depth
Position
Course over ground
Speed over ground
Vessel speed
Wind data
Fuel flow rate
Engine hours
Engine warning indicators
DC Voltage

Switch Controls
Relay switch	yes (5)

Alarms
Temperature
Geofence
Offline
Voltage
Shore power
Security sensor
Depth
Bilge pump

OnDeck Hub
OnDeck™ security sensor
OnDeck™ temperature sensor
OnDeck™ shore power sensor
OnDeck™ relay switch 12 Vdc
Power cable
In/out data cable (19-pin), sensor/relay output
Garmin Marine Network cable
NMEA 2000® drop cable
NMEA 2000 T-connector
