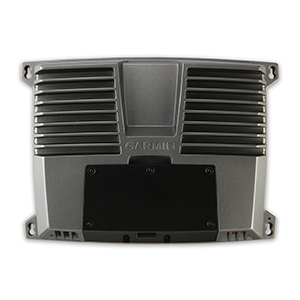

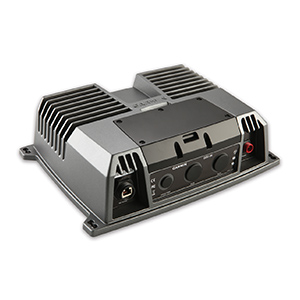

The GSD 26 digital sonar ushers in the next evolution of sport fishing technology, providing unrivaled target separation at far greater depths than traditional sonar.

Discover Spread Spectrum Clarity

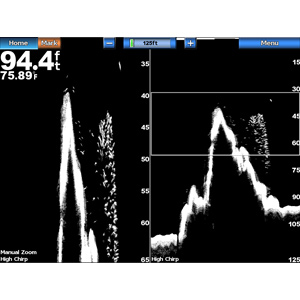

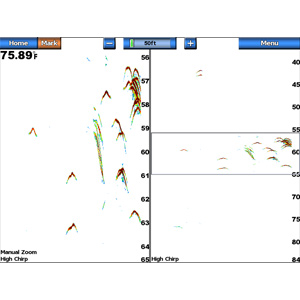

For serious deep-sea sport fishing, the GSD 26 takes high-definition targeting to a whole new level. With a compatible transducer, the GSD 26’s Spread Spectrum technology scans on multiple frequencies at one time, returning vast amounts of data to the receiver. As a result, you can expect precise, shallow-water-like target separation at much greater depths – up to 10,000 ft (3,000 m).

A traditional fixed frequency mode allows you to manually adjust frequencies from 33 kHz to 250 kHz for enhanced targeting of specific fish species. You can also adjust transmit power from 300 W to 3 kW (depending on transducer) for even more control over your sonar returns.

Get Two Sonars in One

The GSD 26's dual-transceiver design allows for simultaneous and independent transducer operation. You have complete control over the data you see on your compatible Garmin chartplotter, which easily connects to the GSD 26 over the Garmin Marine Network.

GSD 26: Serious sonar. For serious sport fishing.

General
Case material	Fully gasketed, aluminum and steel housing with plastic access panel
Dimension	10.8"×14.7"×3.9" (274 mm × 373 mm × 100 mm)
Weight	11.37 lbs (5.16 kg)
Waterproof	IPX7
Temperature range	From 5°F to 158°F (from -15°C to 70°C)
Electrical Features
Power Input	10-35 V
Power usage	100 W maximum
Fuse	10 A
Compass safe distance	23.6 in. (60 cm)
Sonar Features
Frequency	33-250 khz (dependent on transducer)
Transmit power	25-3,000 W rms
Maximum depth	10,000 ft (3,048 m)
Connections
Garmin Marine Network Ports	1

GSD 26
Power cable
Marine network cable (6 ft)
Mounting hardware
software update SD card
Documentation

Download the File

Software License Agreement

By downloading, installing, or using this software, you agree to be bound by the terms and conditions of the following license agreement. Please read this agreement carefully.

Garmin Corporation ("Garmin") grants you a limited, non-exclusive license to use the upgrade software ("Software") in binary executable form in the normal operation of the applicable Garmin products. Title, ownership rights, and intellectual property rights in and to the Software remain in Garmin. This license is personal to you and you may make copies of the software only for your personal use. You agree that this license agreement does not need to be signed for it to take effect.

The software is provided on an "as is" basis without warranty of any kind — either expressed or implied — including, without limitation, any implied warranties of merchantability or fitness for a particular purpose. Garmin does not warrant the performance of the software or that the software will meet your requirements or operate error free.

You acknowledge that this Software is the property of Garmin and is protected under United States of America copyright laws and international copyright treaties. You further acknowledge that the structure, organization, and code of the Software are valuable trade secrets of Garmin and that the Software in source code form remains a valuable trade secret of Garmin. You agree not to decompile, disassemble, modify, reverse assemble, reverse engineer, or reduce to human readable form the Software or any part thereof or create any derivative works based on the Software.

You agree not to export or re-export the Software to any country in violation of the export control laws of the United States of America.

2024/07/15

GSD 26 Asia software version 3.0

Download(336.8 KB)

GSD 26 Asia software version 3.0

Changes made from version 2.00 to 3.00:New!

Newer MFDs can now view each frequency of a transducer independently without affecting other MFDs on the network.
Added support for Airmar B75HW, B175MW, and TM185MW transducers.

Installation instructions:

Click on 'Download' and choose to save the file to your computer. Select an easy place to find the file, such as the 'My Documents', 'Downloads', or 'Desktop'.
Once the download is complete, double-click to open the zip file from the location it was downloaded to.
Drag the 'Garmin' folder from this location and drop it onto the card. The 'Garmin' folder should be the highest level folder on the SD card.
Power on the device of GSD 26 and your chartplotter. Ensure the chartplotter is connected to the network with the GSD 26.
Insert the card into the card slot of your chartplotter. Select 'Update Software' in the window that automatically displays.

Additional Info:

This download is compatible with PC and Mac.
Use a new SD card formatted to FAT32 for this update.
Minimum SD card size: 4GB
Maximum SD card size: 32GB
Please back up your user data before applying the update.
Please avoid the use of an existing ActiveCaptain card or mapping card, as the data could potentially be lost in the process.
