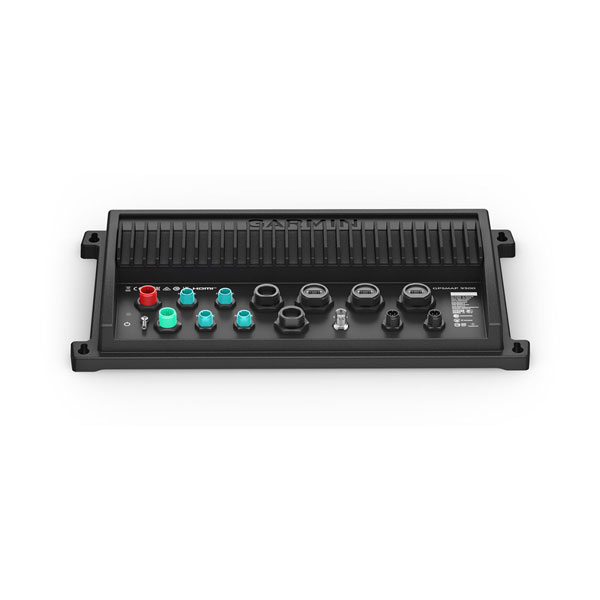

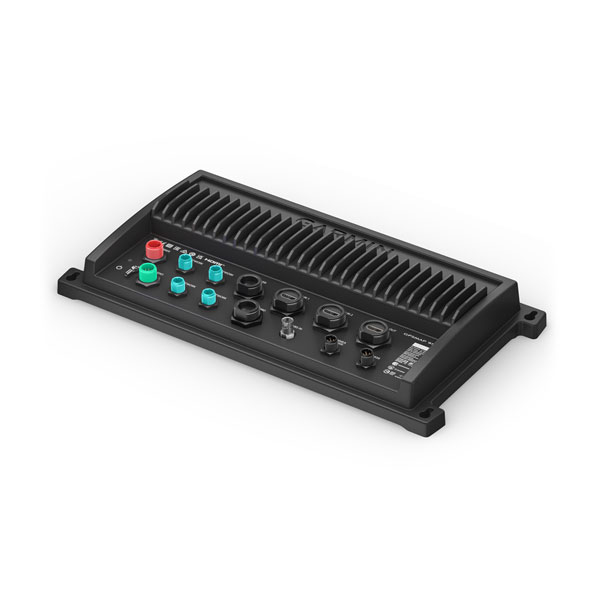

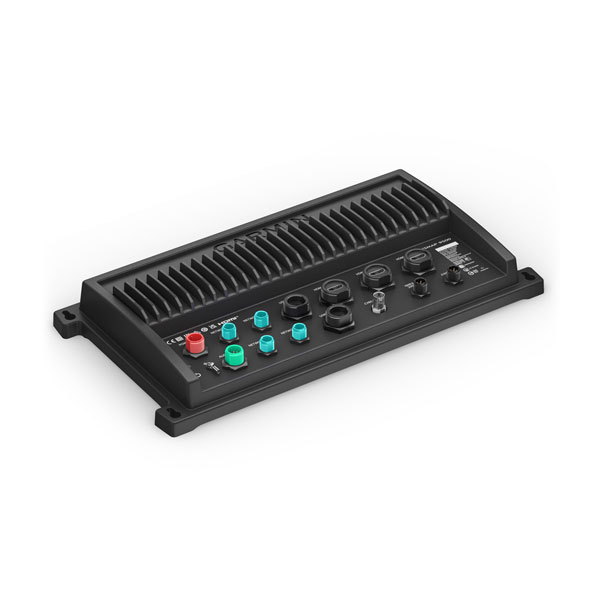

GPSMAP 9500 Black Box

Part Number 010-02677-00

ONLINE STORE

Feature
Specs
In The Box
Update
Accessories

Plot Your Paradise with a Premium Black Box System

Connect to third-party HDCP compliant monitors through HDMI with USB DRD capability for touchscreen support
For superior performance, gain up to 7 times faster processing power than previous generations
Build extensive networks with reliable connectivity and gigabit speeds on the new Garmin BlueNet network
Integrate with the Garmin suite of sonar options, including LiveScope and Panoptix sonars, GSD sonar modules¹ and more
Take command of monitoring, control and automation systems with support for EmpirBus systems and other third-party solutions via OneHelm integrations
Enjoy high-quality entertainment with video integration capabilities through HDCP distribution

FOR CAPTAINS WHO DEMAND THE BEST

Bring paradise to the dash of your boat when you connect the premium GPSMAP 9500 black box to your HDCP compliant monitors. It features up to 7 times faster processing power than previous generations for superior performance — so you can draw charts quickly and calculate routes with lightning speed. It adds comprehensive connectivity throughout your vessel.

Create a Fully Integrated Helm

With the GPSMAP 9500 black box, you can build an extensive network for your helm that links multiple chartplotters, monitors, radars, cameras and sonars — and enjoy up to 10 times faster networking speeds with minimal lag. Keep tabs on engine performance with extensive engine integration. Control your autopilot with any compatible chartplotter on the network with autopilot integration. Connect cameras to see footage directly on the chartplotter, including a bird’s-eye view of your vessel with support for our Surround View Camera System². Enjoy audio and video integrations that allow you to show and hear the same video throughout the screens and speakers on your network.

Connect with Your System

Integrated Wi-Fi^®, BLUETOOTH^® and ANT^® technologies connect compatible devices to your system. You’ll enable easy, wireless software updates via the ActiveCaptain app with your compatible smartphone or tablet. Use your compatible Garmin smartwatch for remote control of key MFD features, including chart zoom, layout shortcut, Fusion^® stereo, autopilot and more — and stream important data from your system directly to your wrist. You can even use spoken commands to control chartplotters through your compatible headset.

Fish with Stunning Detail

Get full support for our suite of sonar options¹, including CHIRP traditional sonar, GSD 28 xCHIRP high-powered sonar, ClearVü and SideVü scanning sonars and Panoptix PS70 or LiveScope XR live sonar options.

Add Our Best Chart Coverage

Get support for detail-rich mapping of coastal waters, lakes and rivers for your region with Garmin Navionics+ and Garmin Navionics Vision+ cartography. Garmin Navionics+ charts make it easy to plot your course with depth range shading, 0,5 m contours and more. You can also upgrade to Garmin Navionics Vision+ charts, which include premium relief shading for an easy-to-interpret, clearer view of bottom structure, satellite imagery for superior situational awareness and more. Both products provide Auto Guidance+ technology³ that lets you navigate with suggested dock-to-dock routings. Plus, charts are constantly being enhanced with new and amended content; thousands of updates are made every day. Your purchase includes a 1-year subscription to daily chart updates via the ActiveCaptain app and much more.

¹ Sonar black box and transducers sold separately
² Required accessory sold separately
³ Auto Guidance+ is for planning purposes only and does not replace safe navigation operations

Wi-Fi is a registered trademark of the Wi-Fi Alliance. The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Garmin is under license. Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc.

Purchase New Charts

General
Dimension	15.1" x 7.8" x 1.9" (38.3 x 19.8 x 4.7 cm)
Weight	3.49 lbs (1.583 kg)
Waterproof	IPX7
Display Type	None (external display)
Display Size	None (external display)
Display Resolution	1920 x 1080 1024 x 600 1280 x 800 1920 x 1200 3840 x 2160 Letterboxed 1024 x 768 1280 x 1024
Maps & Memory
Accepts Data Cards	no (USB Card Reader required)
Waypoints	5,000
Track points	50,000
Tracks	50 saved tracks
Navigation Routes	100
Sensors
GPS	yes (with external GPS antenna)
GLONASS	yes (with external GPS antenna)
Galileo	yes (with external GPS antenna)
BeiDou	yes (with external GPS antenna)
NMEA 2000 Compatible
NMEA 0183 Compatible
Supports WAAS	yes (with external GPS antenna)
Supports multi-band, multi-constellation GPS	yes (with external GPS antenna)
Optional Map Support
Garmin Navionics+™
Garmin Navionics Vision+™
Garmin Quickdraw Contours
Chartplotter features
Smart Mode Compatible
AIS
DSC
Supports Fusion-Link™ compatible radios
GSD Black Box Sonar Support
GCV Black Box Sonar Support
ActiveCaptain® compatible	yes
GRID (Garmin Remote Input Device) compatible
Wireless Remote Compatible
Sailing Features
Spoken audio alerts
OneHelm support
Electrical Features
Power Input	10 - 32 Vdc
Typical current draw at 12 Vdc	2.0 A
Maximum current draw at 12 Vdc	3.3 A
Maximum power usage at 10 Vdc	40W
Sonar Features
Displays sonar
Traditional sonar (dual frequency/beam)	yes (with compatible black box sonar)
ClearVü	yes (with compatible black box sonar)
SideVü	yes (with compatible black box sonar)
Panoptix™ sonar
LiveScope
Connections
NMEA 2000® ports	1
Connections NMEA0183 Input Ports	1
NMEA 0183 output (Tx) ports	1
Video input ports	1 - BNC composite 2 - HDMI (HDCP compliant)
Video output ports	1 - HDMI
J1939 ports	1
Garmin BlueNet network ports	4
USB ports	yes (2x USB-C)
BLUETOOTH® pairing
ANT+ (Connectivity)
Garmin Wi-Fi network (local connection)
Audio output

GPSMAP 9500 Black Box
Power cable
Backbone/drop cable (2 meters) and T-connector for the NMEA 2000® Network
Mounting hardware
Documentation

GPSMAP 9500 Black Box

GPSMAP 9500 Black Box
