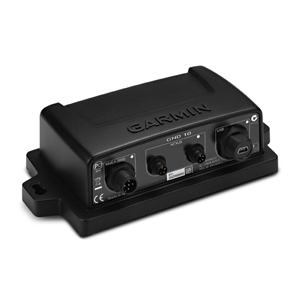

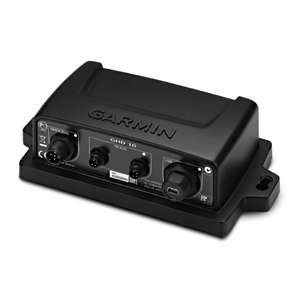

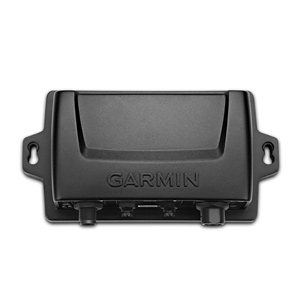

GND™ 10 Black Box Bridge

Part Number 010-01226-00

ONLINE STORE

Feature
Specs
In The Box
Update
Accessories

Converts data between the Nexus network and NMEA 2000®
Provides compatibility between Nexus and Garmin products
Simple plug-and-play installation between Nexus, NMEA 2000 and USB
No user setup or system configuration required
Allows PC applications, such as NexusRace™, Expedition, Adrena or SeaTrack, to communicate sailing-specific functions between Nexus and NMEA 2000 networks

The GND 10 black box bridge seamlessly integrates Nexus instruments and sensors with the Garmin family. It converts data between the Nexus Network and NMEA 2000 to provide compatibility between Nexus and Garmin products, including gWind™ and gWind™ Race transducers. Simple plug-and-play installation between Nexus and NMEA 2000, with USB connectivity, eliminates the need for user setup and system configuration.

GND 10 allows PC applications, such as NexusRace, Expedition, Adrena or SeaTrack, to communicate sailing-specific functions between Nexus and NMEA 2000 networks. It also enables GND 10 software updates over NMEA 2000. Existing NexusRace PC application can be used to update software, configure and calibrate Nexus devices over USB using the FDX protocol.

Unit Dimension, WxHxD: 170 x 90 x 50 mm
Weight: 196 g
Waterproof: Yes (IPX7)
Temp Range: From 5°F to 158°F (-15°C to 70°C)
Voltage Range: 9-16 V
Power Usage: 0.52 W
Compass Safe Distance: 0.1 m
Accuracy Angle: N/A
Speed: N/A
NMEA 2000® Load Equivalency Number (LEN): 4
Wireless Connectivity: No

	Nexus to NMEA 2000	NMEA 2000 to Nexus
Apparent Wind Angle	Y
Apparent Wind Speed	Y
Boat Speed Through Water	Y	Y
Course Over Ground		Y
Course to Waypoint		Y
Cross Track Error		Y
Depth	Y	Y
Distance to Waypoint		Y
Latitude		Y
Longitude		Y
Magnetic Heading	Y	Y
Magnetic Variation		Y
Speed Over Ground		Y
True Heading	Y	Y
True Wind Angle	Y
True Wind Speed	Y
UTC Date		Y
UTC Time		Y
Water Temperature	Y	Y
Barometric Pressure	Y

GND 10
USB Mini-B cable
NMEA 2000® drop cable (2 m)
NMEA 2000 T-connector
Nexus network cable (5 m; straight connector)
Mounting hardware
Documentation
