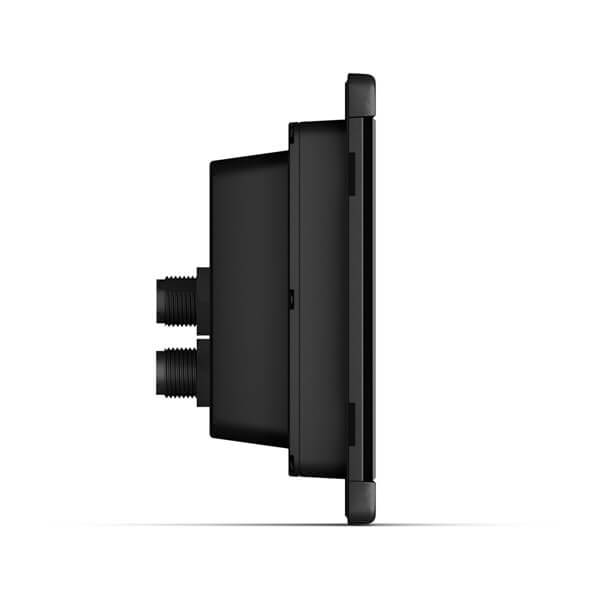

GHC 50 Marine Autopilot Instrument

Part Number 010-02731-00

ONLINE STORE

Feature
Specs
In The Box
Update
Accessories

CONTROL YOUR BOAT WITH CONFIDENCE

When you’re ready to discover paradise, the GHC 50 autopilot instrument helps you navigate with ease — wherever the waters take you.

A 5” touchscreen interface with a bright display? Call it navigating with a simple touch.

Sleek. That’s the look you get with the instrument’s edge-to-edge glass design.

Share settings with your Garmin MFDs, and watch your integrated system come to life.

From the Garmin Marine Network (GMN) to wireless connectivity¹, there are many ways to connect to your autopilot.

Control your boat your way with wired or wireless remote-controlled options.

Plot your paradise.

EASY NAVIGATION AND READABILITY

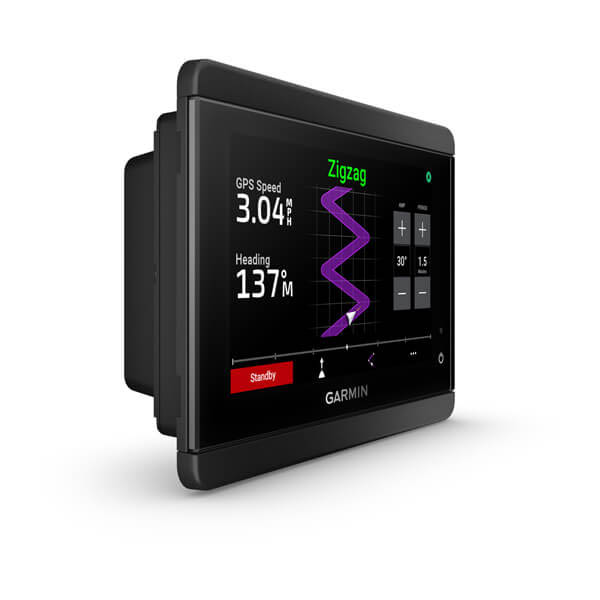

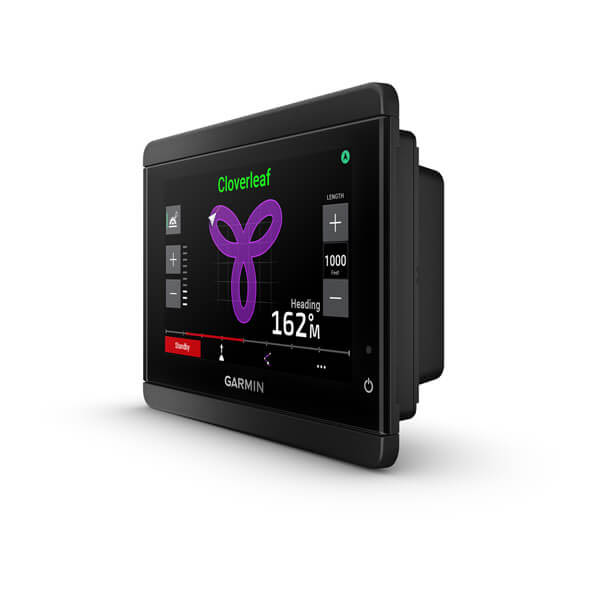

The bright 5” WVGA touchscreen not only looks good; its anti-glare display makes navigation simple and hassle free.

SEAMLESS DESIGN INTEGRATION

With a premium industrial design and edge-to-edge glass display, the GHC 50 autopilot instrument aligns perfectly with your high-end GPSMAP^® chartplotters, creating a stunning look for your helm.

WIRED OR WIRELESS OPERATION

The choice is yours — control your autopilot instrument via wire or a wireless remote for a navigation experience that works best for you.

Connect to everything on your boat.

INTEGRATE YOUR SYSTEM

If you have multiple compatible Garmin devices on your boat, you can share information among them for a more integrated marine system.

COMPATIBILITY

GHC 50 works with all GHP^™ Reactor autopilots, select quatix^® multisport marine smartwatches, the Garmin autopilot remote and GRID^™ 20 remote.

¹If used as a stand-alone autopilot, wireless connectivity only provides software updates; use the Garmin Marine Network for sharing settings and other connected features

General
Dimensions	4.13” x 4.51” x 2.01” (105 x 140 x 51 mm)
Touchscreen	yes
Display resolution	800 x 480
Display type	WVGA
Weight	11.57 oz (328 g)
Water Rating	IPX7
Mounting options	Flat or flush

Connections
NMEA 2000 ports	1
Garmin Marine Network ports	1
ANT+ (Connectivity)	yes
Garmin Wi-Fi Network (local connection)	yes

Electrical Features
Power input	9 to 32 Vdc
Typical current draw at 12 VDC	220 mA
Maximum current draw at 12 VDC	400 mA
Maximum power usage at 10 VDC	4.9 W

GHC™ 50
Black trim piece snap cover
Protective cover
Flush mount gasket and hardware
Garmin Marine Network cable
Garmin Marine Network adapter cable
NMEA 2000® drop cable
NMEA 2000 T-connectors and terminators
Documentation
