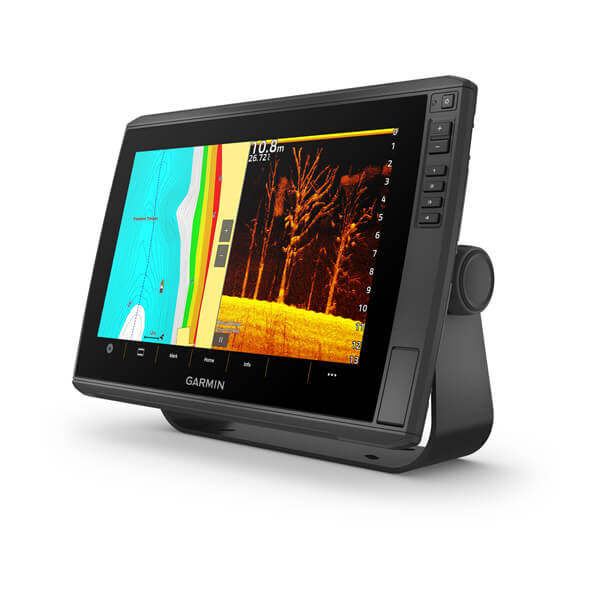

ECHOMAP Ultra 2 12" Chartplotters

Part Number 010-02881-00

ONLINE STORE

Feature
Specs
In The Box
Update
Accessories

ALL THE TOOLS YOU NEED FOR SUCCESSFUL FISHING

With big, crisp, sunlight-readable touchscreen displays, these versatile chartplotters put a world of fishfinding capability at your fingertips. They’re compatible with Garmin Navionics+^™ mapping, and the transducer bundle adds Ultra High-Definition scanning sonars as well as CHIRP traditional sonar.

10” OR 12” TOUCHSCREENS

SUPPORTS LIVESCOPE^™ SONAR¹ AND MORE

COMPATIBLE WITH GARMIN NAVIONICS+ MAPPING

WIRELESSLY NETWORK; SHARE SONAR, WAYPOINTS AND ROUTES²

CAPTURE SCREEN RECORDINGS TO SHARE FISH CATCHES

MULTI-BAND GPS FOR IMPROVED POSITION ACCURACY

WHAT YOU'LL LOVE

LIVESCOPE SONAR SUPPORT

The ECHOMAP Ultra 2 series supports the full lineup of LiveScope live-scanning sonar products (transducers sold separately).

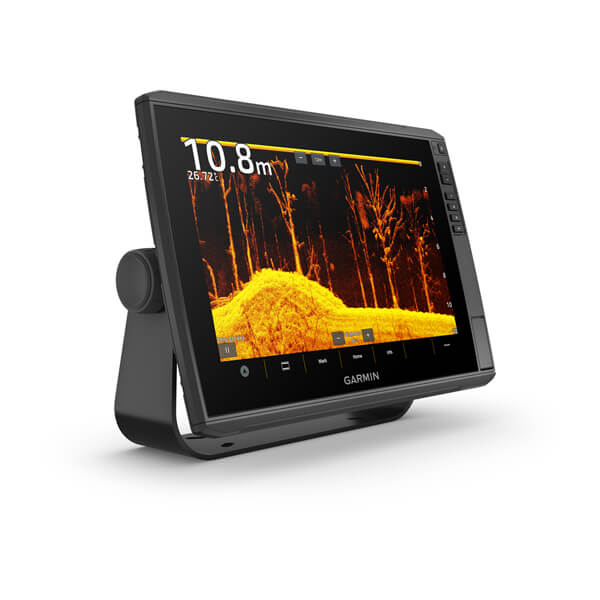

BUILT-IN UHD SONAR

Select models are bundled with a GT56 transducer which provides Garmin CHIRP traditional sonar and Ultra High-Definition ClearVü and SideVü scanning sonars for photo-like images of what’s beneath the surface.

VIVID COLOR PALETTES

High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.

COMPATIBLE CHARTS

Experience unparalleled coverage and detail. Compatible with Garmin Navionics+ mapping, which includes a 1-year subscription for daily updates, depth range shading and more.

PREMIUM MAP UPGRADES

Bring a fresh new look and feel to your chartplotter with optional Garmin Navionics Vision+ premium mapping (sold separately), featuring high-resolution relief shading, satellite imagery and more.

WIRELESS NETWORKING

If you have another compatible ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotter on your boat, you can wirelessly share information — such as sonar³, waypoints and routes — with them.

See everything with the ultra high-definition scanning sonar system.

STAY CONNECTED

MULTI-BAND GPS

Get improved position accuracy with multi-band GPS

NMEA 2000 NETWORK COMPATIBILITY

Connect to heading sensors, autopilots, Fusion-Link audio systems and more.

ACTIVECAPTAIN APP

Pair with the free smart-device app for software updates, screen recording, Garmin Quickdraw Community data and more⁴.

FORCE TROLLING MOTOR

Wirelessly connect to your Force trolling motor to navigate to waypoints, draw and follow routes, and more.

TAKE IT WITH YOU

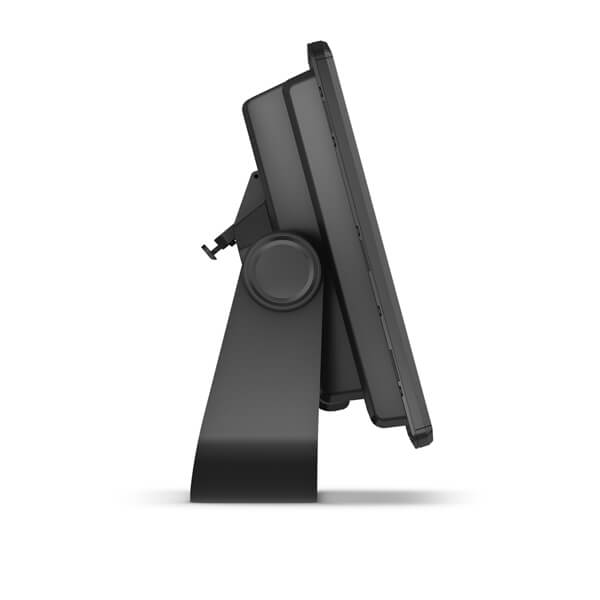

The quick-disconnect bail mount lets you quickly install and remove your unit.

Manage your marine experience using the free ActiveCaptain app

Learn More

Powerful. Efficient. Quiet. Force trolling motor

Learn More

¹LiveScope System sonar transducer sold separately

²Via one-to-one unit wireless connection only

³LiveScope sonar cannot be shared wirelessly between two ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotters

⁴Requires the ActiveCaptain app on your compatible smartphone paired to your ECHOMAP Ultra 2 series chartplotter

Engineering enhancements are ongoing and may not be reflected in the pictures, videos and specifications.

Purchase New Charts

General
Dimension	13.4" x 9.0" x 3.9" (34.1 x 22.9 x 9.8 cm)
Weight	5.5 lbs (2.5 kg)
Waterproof	IPX7
Touchscreen
Display Type	WXGA, IPS
Display Size	10.3" x 6.4"; 12.1" diagonal (26.1 x 16.3 cm; 30.7 cm diagonal)
Display Resolution	1280 x 800 pixels
Mounting Options	Bail or flush
Input	Touchscreen with Keyed Assist
Maps & Memory
Accepts Data Cards	2 microSD cards
Waypoints	5000
Track points	50,000
Tracks	50 saved tracks
Navigation Routes	100
Sensors
GPS
GLONASS
Galileo
BeiDou
Has built-in receiver
Receiver	10 Hz
NMEA 2000 Compatible
Supports WAAS
Supports multi-band, multi-constellation GPS
Optional Map Support
BlueChart g3
BlueChart g3 Vision
Garmin Navionics+™
Garmin Navionics Vision+™
TOPO 100K
Standard Mapping
Garmin Quickdraw Contours
Chartplotter features
AIS
DSC
Supports Fusion-Link™ compatible radios
ActiveCaptain® compatible	yes
Sailing Features
Electrical Features
Power Input	9 to 18 Vdc
Typical current draw at 12 Vdc	2.5 A
Maximum current draw at 12 Vdc	5.0 A
Maximum power usage at 10 Vdc	36 W
Sonar Features
Displays sonar
Power output	600 W
Traditional sonar (dual frequency/beam)	built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
ClearVü	built-in 260/455/800/1000/1200 kHz
SideVü	built-in 260/455/800/1000/1200 kHz
Panoptix™ sonar
LiveScope

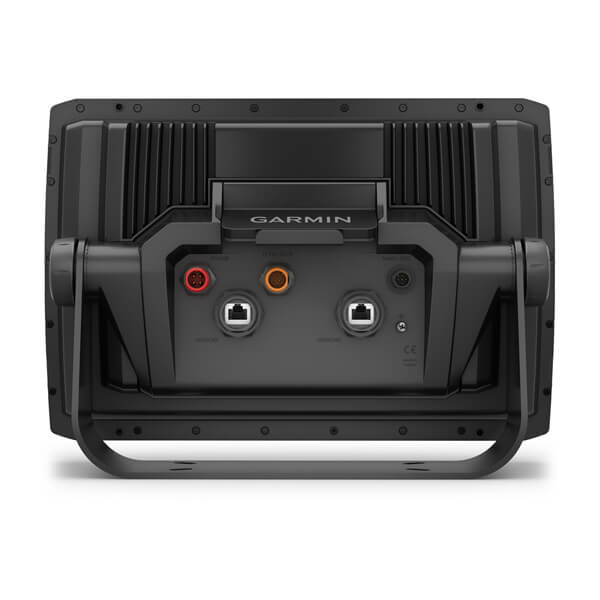

Connections
NMEA 2000® ports	1
Garmin Marine Network Ports	2 (large connector)
12-pin transducer ports	12-pin scanning sonar
ANT+ (Connectivity)
Garmin Wi-Fi network (local connection)
