Discontinued

Panoptix LiveScope System

Part Number 010-02233-00

ONLINE STORE

Feature
Specs
In The Box
Update
Accessories
Compatible Devices

We Took Scanning Sonar and Made It Panoptix

See highly detailed, easy-to-interpret live scanning sonar images of structure, bait and fish swimming below and around your boat in real time, even when your boat is stationary
See incredibly sharp real-time scanning sonar images up to 200’ around your boat
Attitude Heading Reference System stabilizes sonar view on chartplotter screen, even in rough conditions
Simple plug-and-play Garmin Marine Network connector makes it easy to install and seamlessly integrate with your compatible Garmin chartplotter1

Clearly, this is the most amazing sonar technology ever. You have never fished like this before. Panoptix LiveScope is live, real-time scanning sonar. You can actually see easy-to-interpret live scanning sonar images of fish swimming near clearly defined structure. You can even see your lure as you retrieve it. And your boat doesn’t need to be moving. These images are so clear and precise that with a little practice, you might be able to distinguish between species of fish!

Panoptix LiveScope Forward Sonar

LiveScope Forward is an excellent tool for scouting and fishing out ahead of your cast. You’re looking at live, highly detailed and easy-to-interpret scanning sonar images of structure and fish swimming all around your boat — up to 200’ — even while your boat is stationary.

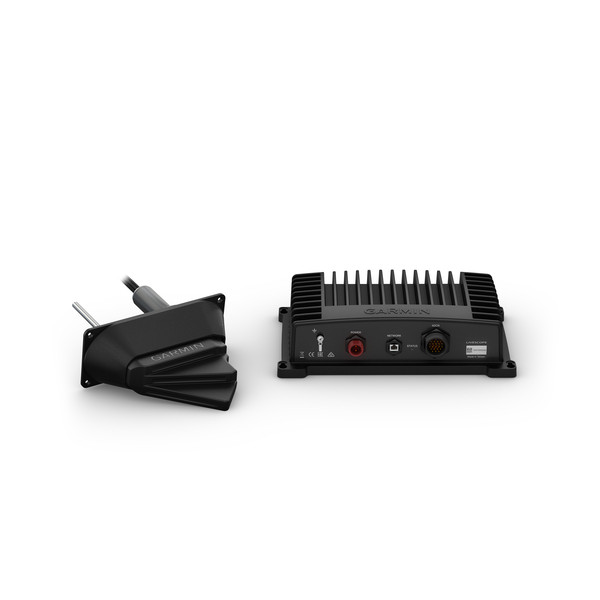

The Panoptix LiveScope scanning sonar system includes a compact GLS 10 sonar black box with LVS32 thru-hull transducer and simple plug-and-play Garmin Marine Network connector, making it easy to install and seamlessly integrate with your compatible Garmin chartplotter¹. Use the transducer as a supplemental traditional and ClearVü sonar source to see a historical representation of structure and fish below your boat.

¹Compatible with GPSMAP 7x2, 9x2, 10x2, 12x2, 12x2 Touch, 7400, 7600, 8400, 8600 series and AQUAMAP 10x2, 12x2 chartplotters as well as ECHOMAP Plus 70cv, 70sv and 90sv chartplotter/sonar combo series

General
Physical dimensions	GLS 10 sonar black box: 9.6” x 5.9” x 2.6” (24.5 x 14.9 x 6.5 cm); LVS32-TH transducer without fairing block: 9.6” x 1.8” x 5.4” (24.4 x 4.6 x 13.7 cm) LVS32-TH transducer with fairing block: 9.6” x 3.4” x 8.1” (24.4 x 8.6 x 20.6 cm)
Weight	GLS 10 sonar black box: 4.3 lbs (2.0 kg); LVS32-TH transducer without fairing block: 4.4 lbs (2.0 kg) LVS32-TH transducer with fairing block: 5.0 lbs (2.3 kg)
Water rating	IPX7
Garmin Marine Network™ ports	1 (small connector)
Temperature range	GLS 10 Black Box: Operating: -15 C to 70 C Panoptix LiveScope LVS12 Transducer: Operating: 0 C to 40 C

LiveScope GLS 10 sonar black box
Panoptix LVS32 transducer
Thru-hull mount hardware
Power cable
2 meter Garmin marine network cable, small connector
Network adapter cable
Mounting hardware
Documentation
