AQUAMAP 1052xs

Part Number 010-01846-00

ONLINE STORE

Feature
Specs
In The Box
Update
Accessories
Compatible Devices

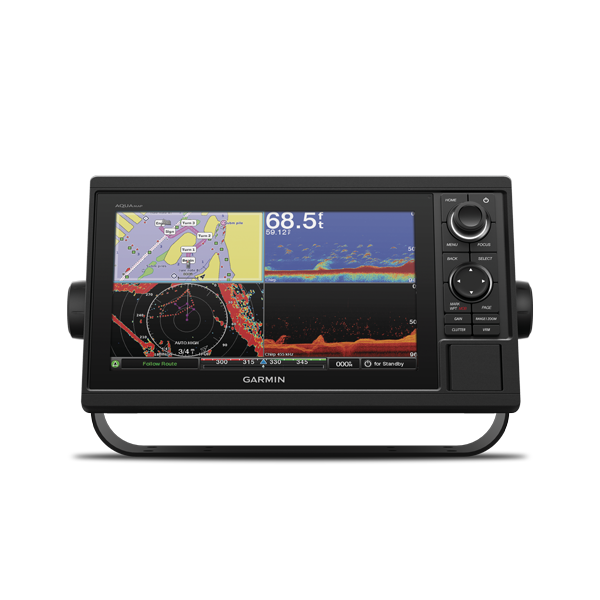

Infinite Fishing with New AQUAMAP

Multi language support : English, Simplified Chinese, Traditional Chinese, Japanese, Korean, Thai, Indonesia Bahasa, Malaysia Bahasa, Vietnamese, Burmese, Hindi, Gujarat.
10-inch color display with keypad interface and multifunction control knob.
Fully network capable for Garmin Marine Network and NMEA 2000 plus NMEA 0183 support
Includes sonar capability with built-in 500W 77/200kHz & 2kW 50/200kHz traditional sonar, 1 kW wide-band CHIRP sonar and 500 W CHIRP ClearVü scanning sonar gives a clearer picture of what’s below the boat as a photographic image with representation of objects, structure and fish and even supports optional 3rd party 2kW traditional 50/200kHz sonar transducers.
Preloaded SEA HD Chart with 9,861 tidal current points support.
High-sensitivity internal 10 Hz GPS, GLONASS and BEIDOU powerful positioning system what quick and easy to drop up to 30,000 accurate waypoints let you find your way back to your secret fishing hot spots.(external GPS antenna is required)

An advanced all-in-one solution with 10-inch AQUAMAP® keyed GPS Chartplotter/Fishfinder/Radar multifunction display (MFD) for professional market. Features a large, bright screen coupled with specific knob and short cut keys that makes the customers more convenience to use. Garmin Marine Network support allows you to share maps, user data, radar and IP cameras among multiple units. NMEA 2000® and NMEA 0183 supports network connectivity including autopilots, digital switching, weather, media, VHF, AIS, engine monitoring and other sensors. Includes full suite of built-in SailAssist features. With capability for Garmin CHIRP sonar, CHIRP ClearVü. It also has built-in support for Panoptix all-seeing sonar and premium Garmin sonar modules (transducers sold separately).

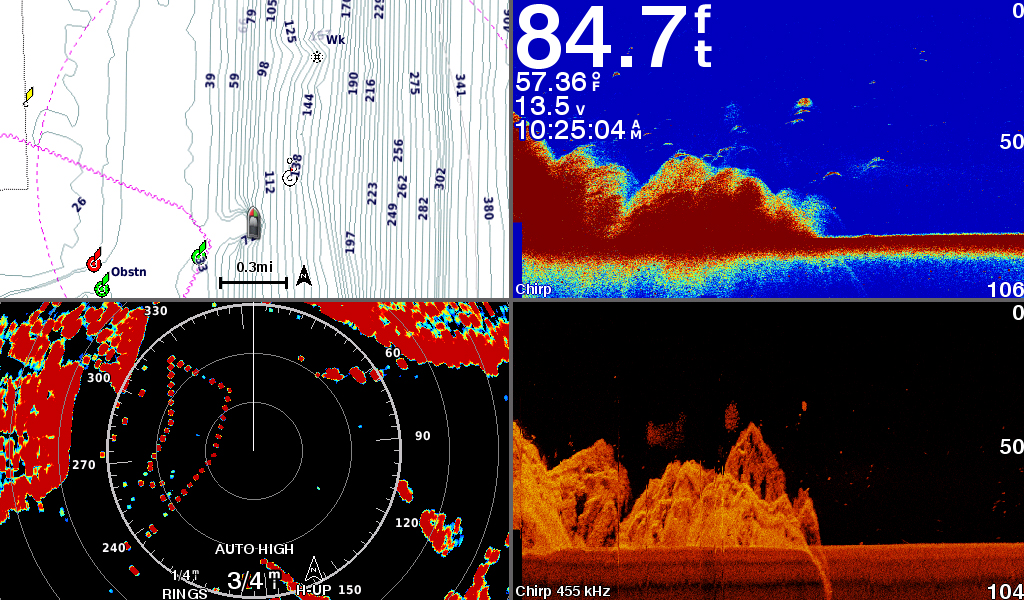

Complete Network Sharing

Garmin Marine Network support allows sharing of sonar, maps, user data, dome or open-array radar, IP cameras and Panoptix sonar among multiple units. Includes NMEA 2000® network connectivity and NMEA 0183 support for autopilots, digital switching, weather, media, VHF, AIS, engine monitoring and other sensors.

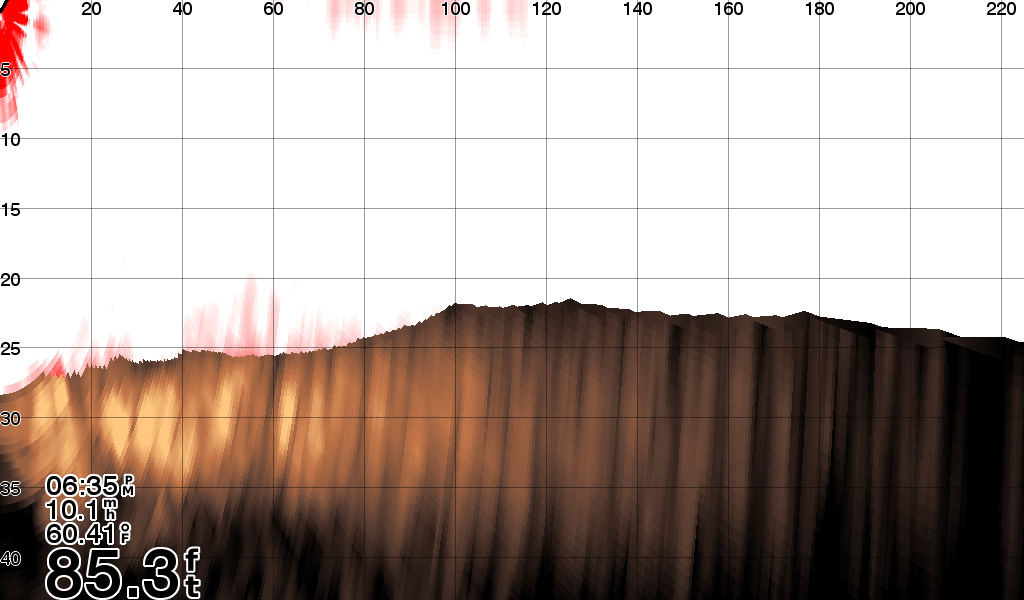

Built-in Sonar Capabilities

Right out of the box, you have access to some amazing sonar capabilities; all you have to add are transducers. Comes with built-in Garmin 500W 77/200kHz & 2kW 50/200kHz traditional sonar, 1 kW wide-band CHIRP sonar, 500W CHIRP ClearVü scanning sonar and also with capability to support optional the 3rd party 2kW traditional transducers. It even supports Panoptix all-seeing sonar, premium Garmin sonar modules and a wide range of transducers (sold separately).

Networked combos can share their internal sonar with any other device on the network. You can also choose what information is overlaid on the sonar screen; for example, time of day or GPS speed.

Shift Zoom & Color Rejection of Sonar

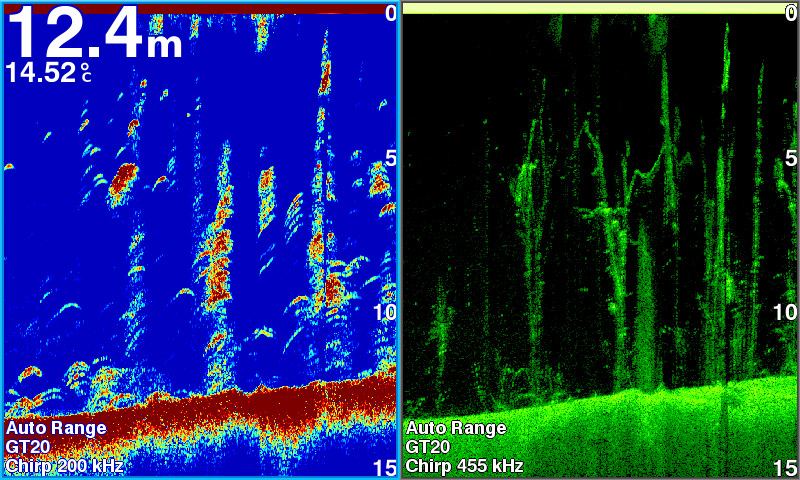

Shift Zoom feature lets you control your owned display portion to focus on detailed sonar data you need. Color Rejection feature lets you concentrate on simpler colors display on sonar page.

Heading, Position Refreshed 10 Times per Second

Fast, responsive built-in 10 Hz GPS, GLONASS and BEIDOU refreshes your position and heading 10 times each second to make your movement on the screen more fluid. It makes dropping up to 30,000 accurate waypoints — and finding your way back to them — quick and easy.

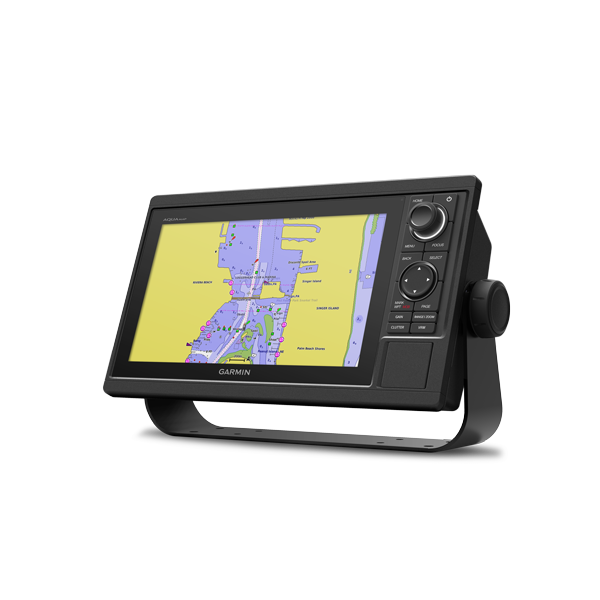

Upgrade to Our Best Maps on the Water

Two standard SD™ card slots provide expandable memory for accessory map purchases such as BlueChart g2 HD, BlueChart g2 Vision HD. The BlueChart g2 Vision HD provide exclusive Garmin Auto Guidance1, a technology that directs you to your hot spots. Based on your boat’s specifications, Auto Guidance instantly creates a visual path you can follow to avoid shallow water and other charted obstructions.

Quickdraw Contours to Create Your Own HD Maps

Quickdraw Contours is a free, easy-to-use software feature already installed on your AQUAMAP. It instantly creates your own personalized HD fishing maps on screen with 1-foot contours. Tailor the maps as needed; you own them. Keep the data for yourself, or share it with Garmin or your friends through Quickdraw Community on Garmin Connect™. No special surveying expertise is required. You just fish while Quickdraw Contours creates maps. There’s no waiting around or sending your files away like other mapping software requires — your results appear instantly.

MotionScope Feature Compatible with Fantom Solid State Doppler Radar

MotionScope™ technology uses the Doppler effect to detect and highlight moving targets to help avoid collisions, find flocks of birds and track weather formations. The Doppler effect is the frequency shift in the radar echo due to the relative motion of the target. This allows for instant detection of any targets moving toward or away from the radar. MotionScope highlights the moving targets on the radar display so you can navigate around other boats or severe weather — or toward fishing spots where birds are feeding at the surface.

Video Input & Output

Share display from other device and you can output video to bigger screen and even out of the bridge

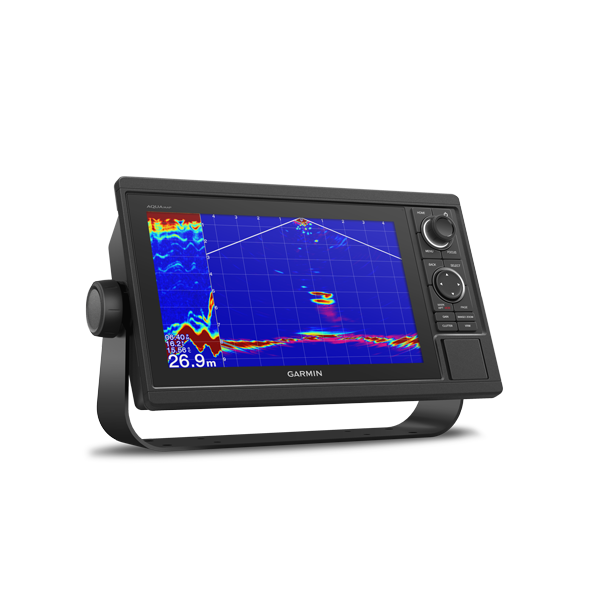

Quick Buttons Operation of GAIN/CLUTTER/RANGE/VRM & the Nice Knob

With 10 inch large, bright displays that feature keypad interface with shortcut GAIN/CLUTTER/RANGE/VRM keys and multifunction knob.

Built-in SailAssist Features

To help you gain a wind-maximizing competitive edge, your multifunction display (MFD) features a pre-race guidance page that shows your virtual starting line along with data fields showing laylines, time to burn before the start and a race timer that can be synchronized across all your networked Garmin GPS products. In addition, other supported sailing features include an enhanced wind rose, heading and course-over-ground lines, set and drift, true and apparent wind data and more.

GPX Waypoints Transfer

If you have waypoints, tracks or frequently used routes stored on another manufacturer’s GPS product — or on a Garmin handheld device — it’s easy to transfer those items to your new Garmin multifunction display (MFD) via industry-standard GPX software formatting.

Manual Download Quick Start Manual

Physical & Performance
Physical dimensions	12.5" x 7.3" x 2.7" (31.8 x 18.5 x 6.9 cm)
Display size, WxH	8.8" x 4.9" (22.4 x 12.5 cm)
Display resolution, WxH	1024 x 600 pixels
Display type	WSVGA display
Weight	4.1 lbs (1.85 kg)
Antenna	External BNC or external over NMEA 2000
NMEA 2000® compatible
NMEA 0183 compatible
Power consumption	Max power usage at 12 Vdc: 32.4 W Typical current draw at 12 Vdc: 1.9 A Max current draw at 12 Vdc: 2.7 A
Mounting options	Bail or flush
Garmin Marine Network™

Maps & Memory
Preloaded maps	WorldWide Shaded Relief Map and South Asia Detail Map
Accepts data cards	2 SD™ cards
Waypoints	30,000
Routes	200
Track log	50,000 points; 50 saved tracks

Chartplotter Features
Garmin Radar compatible
Garmin Sonar compatible
Supports AIS (tracks target ships position)
Supports DSC (displays position data from DSC-capable VHF radio)
Tide tables
GSD™ Black Box sonar support
GCV™ Black Box sonar support
GRID™ (Garmin Remote Input Device) compatible

Sonar Features & Specifications
Dual-frequency (50/200 kHz) sonar capable
Dual-beam (77/200 kHz) sonar capable
Frequencies supported	Traditional: 50/200, 77/200 kHz Single Channel CHIRP: 40 to 240 kHz Garmin ClearVü CHIRP: 260/455/800 kHz (dependent on transducer)
Transmit power (RMS)	Traditional 50/200 kHz sonar: 2 kW 77/200 kHz sonar: Max 500W CHIRP high/mid/low bands : Max 1kW Garmin ClearVü CHIRP: Max 500 W (dependent on transducer)
CHIRP sonar technology
ClearVü
Maximum depth	5,000 ft at 2kW (depth capacity is dependent on water bottom type and other water conditions)
Bottom lock (shows return from the bottom up)
Water temperature log and graph
Sonar recording
Sonar history rewind

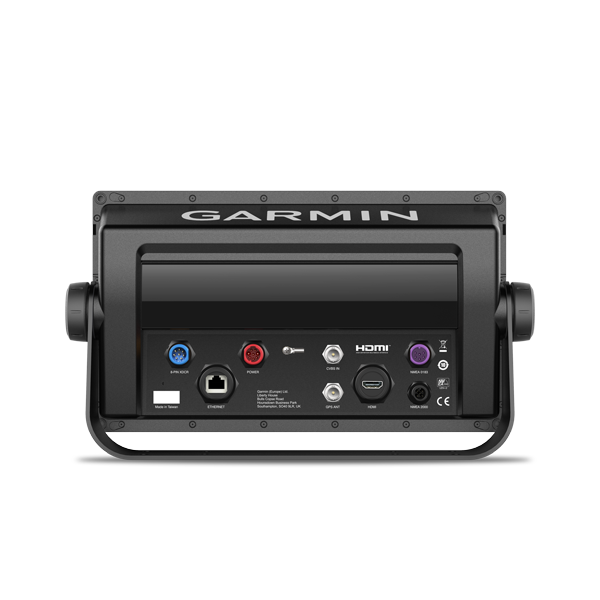

Connections
Transducer pin numbers	8
NMEA 0183 compatible ports	2
Video input/output

AQUAMAP 1052xs MFD
Power/data cable
NMEA 2000 T-connector
NMEA 2000 drop cable (2 m)
Bail mount kit with knobs
Flush mount kit with gasket
Protective cover
Trim piece snap covers
Documentation

Download the File

Software License Agreement

By downloading, installing, or using this software, you agree to be bound by the terms and conditions of the following license agreement. Please read this agreement carefully.

Garmin Corporation ("Garmin") grants you a limited, non-exclusive license to use the upgrade software ("Software") in binary executable form in the normal operation of the applicable Garmin products. Title, ownership rights, and intellectual property rights in and to the Software remain in Garmin. This license is personal to you and you may make copies of the software only for your personal use. You agree that this license agreement does not need to be signed for it to take effect.

The software is provided on an "as is" basis without warranty of any kind — either expressed or implied — including, without limitation, any implied warranties of merchantability or fitness for a particular purpose. Garmin does not warrant the performance of the software or that the software will meet your requirements or operate error free.

You acknowledge that this Software is the property of Garmin and is protected under United States of America copyright laws and international copyright treaties. You further acknowledge that the structure, organization, and code of the Software are valuable trade secrets of Garmin and that the Software in source code form remains a valuable trade secret of Garmin. You agree not to decompile, disassemble, modify, reverse assemble, reverse engineer, or reduce to human readable form the Software or any part thereof or create any derivative works based on the Software.

You agree not to export or re-export the Software to any country in violation of the export control laws of the United States of America.

2023/09/21	Aquamap10x2/12x2 PreInstall STEP 1	Download(35.5 MB)
2023/09/21	Aquamap10x2/12x2 v4.10 STEP 2	Download(181.4 MB)
2023/09/21	Aquamap10x2/12x2 v4.10 STEP 3	Download(119.5 MB)
2019/01/09	GPS software update	Download(542 MB)

Aquamap10x2/12x2 PreInstall STEP 1

Release Note:

Fix GPS sharing via Ethernet issue.
Remove simulator button.
Correct production name in software information page.
Prevent lowercase alphabetic input in waypoint editor.

Installation Instructions：

Please use AQUAMAP_V2_PreInstall_STEP_1.zip to make an update card (Unzip and drag the 'Garmin' folder to SD card. The 'Garmin' folder should be the highest level folder on the SD card.) and insert it to the unit to do the pre-installation. The unit will reboot two times and the screen might be flashing or blanking out into several colors, which is normal behavior. Please wait until the whole process has been done before moving to the next step. It will take about 5 minutes to finish.
Use AQUAMAP_V2_v410_STEP_2.zip to make an update card (Unzip and drag the 'Garmin' folder to SD card. The 'Garmin' folder should be the highest level folder on the SD card.) and insert it to the unit to do the secondary installation. This package will install the main partition. The unit will reboot two times and please wait until the whole process has been done before moving to the next step. It will take about 5 minutes to finish. After reboot, user need to pass through the startup wizard options before moving forward to next step.
Use AQUAMAP_V2_v410_STEP_3.zip to make an update card (Unzip and drag the 'Garmin' folder to SD card. The 'Garmin' folder should be the highest level folder on the SD card.) and insert it to the unit to do the third installation. This package will install the recovery partition. The unit will reboot two times and please wait until the whole process has been done. It will take about 5 minutes to finish.
Please do not turn off the unit while the update is in progress. If any of the steps become unsuccessful, try to repeat the same installation step again, avoid moving directly to next step.

System requirements：

Windows / Linux PC or Mac that has available SD card reader.

Aquamap10x2/12x2 v4.10 STEP 2

Release Note:

Fix GPS sharing via Ethernet issue.
Remove simulator button.
Correct production name in software information page.
Prevent lowercase alphabetic input in waypoint editor.

Installation Instructions：

Please use AQUAMAP_V2_PreInstall_STEP_1.zip to make an update card (Unzip and drag the 'Garmin' folder to SD card. The 'Garmin' folder should be the highest level folder on the SD card.) and insert it to the unit to do the pre-installation. The unit will reboot two times and the screen might be flashing or blanking out into several colors, which is normal behavior. Please wait until the whole process has been done before moving to the next step. It will take about 5 minutes to finish.
Use AQUAMAP_V2_v410_STEP_2.zip to make an update card (Unzip and drag the 'Garmin' folder to SD card. The 'Garmin' folder should be the highest level folder on the SD card.) and insert it to the unit to do the secondary installation. This package will install the main partition. The unit will reboot two times and please wait until the whole process has been done before moving to the next step. It will take about 5 minutes to finish. After reboot, user need to pass through the startup wizard options before moving forward to next step.
Use AQUAMAP_V2_v410_STEP_3.zip to make an update card (Unzip and drag the 'Garmin' folder to SD card. The 'Garmin' folder should be the highest level folder on the SD card.) and insert it to the unit to do the third installation. This package will install the recovery partition. The unit will reboot two times and please wait until the whole process has been done. It will take about 5 minutes to finish.
Please do not turn off the unit while the update is in progress. If any of the steps become unsuccessful, try to repeat the same installation step again, avoid moving directly to next step.

System requirements：

Windows / Linux PC or Mac that has available SD card reader.

Aquamap10x2/12x2 v4.10 STEP 3

Release Note:

Fix GPS sharing via Ethernet issue.
Remove simulator button.
Correct production name in software information page.
Prevent lowercase alphabetic input in waypoint editor.

Installation Instructions：

Please use AQUAMAP_V2_PreInstall_STEP_1.zip to make an update card (Unzip and drag the 'Garmin' folder to SD card. The 'Garmin' folder should be the highest level folder on the SD card.) and insert it to the unit to do the pre-installation. The unit will reboot two times and the screen might be flashing or blanking out into several colors, which is normal behavior. Please wait until the whole process has been done before moving to the next step. It will take about 5 minutes to finish.
Use AQUAMAP_V2_v410_STEP_2.zip to make an update card (Unzip and drag the 'Garmin' folder to SD card. The 'Garmin' folder should be the highest level folder on the SD card.) and insert it to the unit to do the secondary installation. This package will install the main partition. The unit will reboot two times and please wait until the whole process has been done before moving to the next step. It will take about 5 minutes to finish. After reboot, user need to pass through the startup wizard options before moving forward to next step.
Use AQUAMAP_V2_v410_STEP_3.zip to make an update card (Unzip and drag the 'Garmin' folder to SD card. The 'Garmin' folder should be the highest level folder on the SD card.) and insert it to the unit to do the third installation. This package will install the recovery partition. The unit will reboot two times and please wait until the whole process has been done. It will take about 5 minutes to finish.
Please do not turn off the unit while the update is in progress. If any of the steps become unsuccessful, try to repeat the same installation step again, avoid moving directly to next step.

System requirements：

Windows / Linux PC or Mac that has available SD card reader.

GPS software update

Installation Instructions：

Copy "gps_fw.bin" file under Garmin\RemoteSW folder on SD card.
Insert the SD card into the unit, select “Update GPS Software” to activate the GPS software update.
